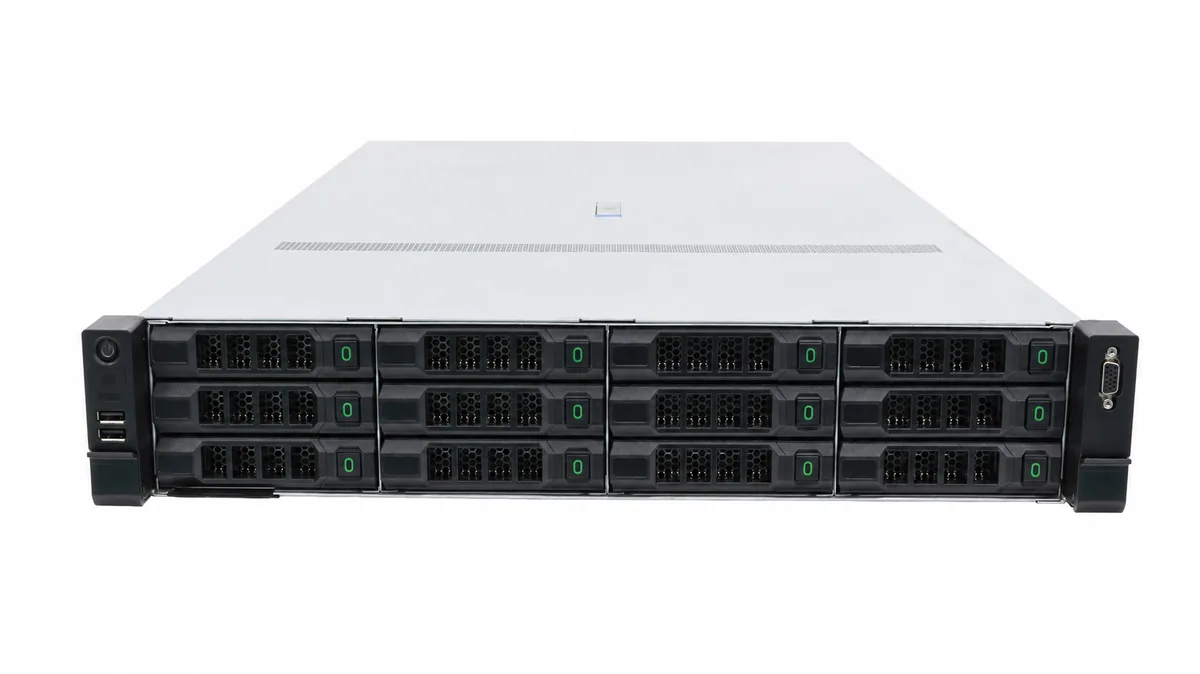

TFNEW ZN-2301 2U General Server
Model: ZN-2301 · SKU: 0603005
ZN-2301 is a dual-socket server based on Intel Xeon 6500/6700 series processors, compliant with the SSI-EEB specification, with 32 DDR5 memory slots up to 6400 MT/s, meeting high network bandwidth, high compute performance and large memory capacity requirements for big data, cloud computing and distributed storage.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
ZN-2301 — Enterprise Server Platform
The ZN-2301 is an enterprise dual-socket general-purpose server based on Intel Xeon 6500/6700 series processors, with 32 DDR5 slots up to 6400 MT/s and flexible front/rear/internal drive configurations.
High-Density Computing
Dual Intel Xeon 6500/6700 series processors deliver top-tier compute performance.
Flexible Storage Expansion
Front, rear and internal drive configurations for elastic scaling of business data.
Enterprise Reliability
1+1 redundant power, N+1 fans and BMC AST2600 management ensure stable 7x24 operation.
Specifications
| Processor | Dual Intel Xeon 6-series processors (6500/6700) |
|---|---|
| Memory | 32x DDR5 slots, up to 6400 MT/s |
| Storage | Supports multiple hot-swap drive configurations; front: 12x 3.5-inch SAS/SATA/NVMe (HDD/SSD); rear: 2x 2.5-inch SAS/SATA/NVMe (HDD/SSD); internal: NVMe M.2 2280/22110 |
| RAID Support | SAS4.0/SATA3.0, RAID0/1/10/5/50/6/60, cache super-capacitor protection |
| PCIe Expansion | 5x single-width PCIe 5.0/CXL 2.0 x16 slots, 1x single-width PCIe 5.0/CXL 2.0 x8 slot |
| Network | 1x RJ45 management port, 2x RJ45 10GbE ports |
| I/O Ports | Front: 2x USB2.0, 1x power button, 1x reset button, 1x UID button; rear: 2x USB3.0, 1x VGA, 1x RJ45 management port, 2x RJ45 10GbE ports, 1x UID button; internal: TPM security module interface |
| Fans | 4 hot-swap fans, N+1 redundant |
| Power | 1+1 redundant 800W/1300W/1600W/2000W CRPS standard power supplies |
| BMC | Onboard BMC AST2600 chip, IPMI2.0/Redfish support |
| Environment | 5°C-35°C (operating temperature support varies by configuration) |
| Dimensions | 87 mm (H) x 436 mm (W) x 660 mm (D) |
| SKU | 0603005 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
Cloud Computing
High-density compute nodes for private and public cloud infrastructure.
Contact our team →Big Data and Distributed Storage
High-capacity storage and compute for big data analytics and distributed storage clusters.
Contact our team →Virtualization and Hyper-Converged
Serves as the foundation for virtualization and hyper-converged platforms.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
