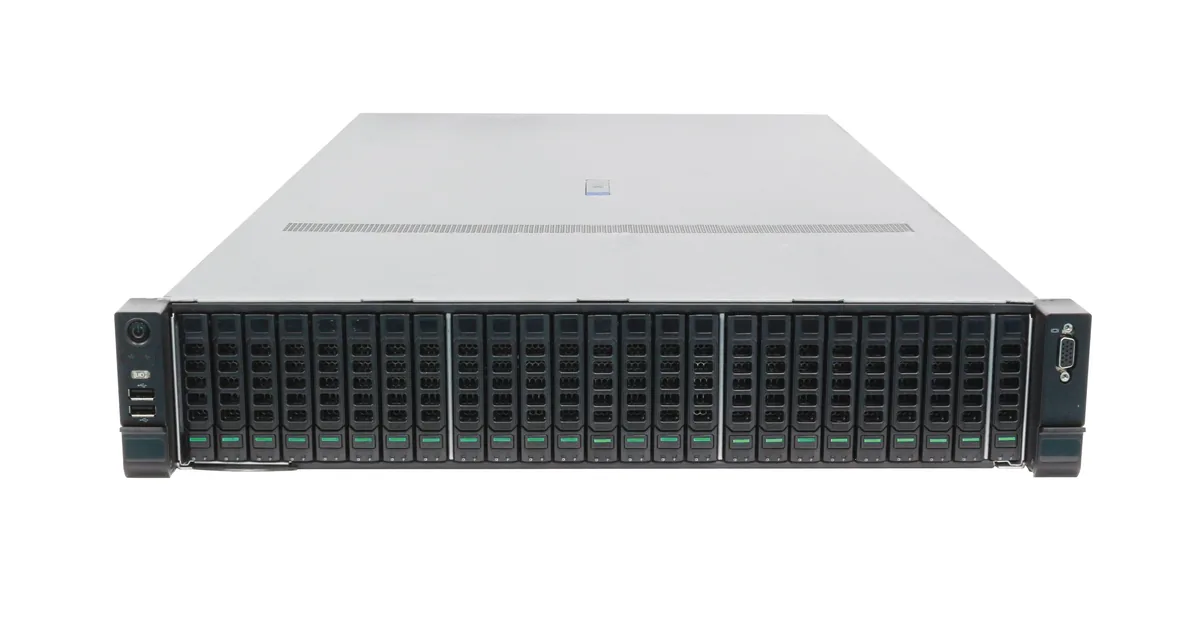

TFNEW ZN-2111 2U General Server
Model: ZN-2111 · SKU: 0603002
ZN-2111 is a 2U general-purpose server based on 3rd Gen Intel Xeon Scalable processors, with 32 DDR4 slots, supporting high network bandwidth, high compute performance and large memory capacity, widely used in big data, cloud computing and distributed storage.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
ZN-2111 — Enterprise Server Platform
The ZN-2111 is an enterprise 2U general-purpose server powered by 2x 3rd Gen Intel Xeon Scalable processors, with 32 DDR4 slots up to 3200 MT/s and up to 27x 2.5-inch storage bays.
High-Density Computing
Dual 3rd Gen Xeon Scalable processors deliver enterprise-grade compute performance.
Flexible Storage Expansion
Up to 27x 2.5-inch SAS/SATA/NVMe bays for elastic scaling of business data.
Enterprise Reliability
1+1 redundant power, N+1 fans and BMC AST2600 management ensure stable 7x24 operation.
Specifications
| Processor | 2x 3rd Gen Intel Xeon Scalable processors |
|---|---|
| Chipset | Intel C621A chipset |
| Memory | 32x DDR4 slots, up to 3200 MT/s, RDIMM support |
| Storage | Up to 25x 2.5-inch SAS/SATA/NVMe + 2x 2.5-inch SAS/SATA/NVMe |
| RAID Support | SAS4.0/SATA3.0, RAID0/1/10/5/50/6/60, cache super-capacitor protection |
| Network | Onboard 2x 1GbE (RJ45) and 1x OCP 3.0 NIC slot, standard OCP3.0 NIC optional |
| PCIe Expansion | 2x PCIe 4.0 x32 riser slots, 1x PCIe 4.0 x8 slot; 1x MCIO (PCIe 4.0 x8) interface and 1x OCP3.0 slot |
| BMC | Onboard BMC AST2600 chip, IPMI2.0/Redfish support |
| Fans | 6 hot-swap high-performance fans, N+1 redundant |
| Power | 1+1 redundant 800W/1300W/1600W/2000W CRPS standard power supplies |
| Environment | 5°C-35°C (operating temperature support varies by configuration) |
| Dimensions | 87 mm (H) x 430 mm (W) x 750 mm (D) |
| SKU | 0603002 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
Cloud Computing
High-density compute nodes for private and public cloud infrastructure.
Contact our team →Big Data and Distributed Storage
High-capacity storage and compute for big data analytics and distributed storage clusters.
Contact our team →Virtualization and Hyper-Converged
Serves as the foundation for virtualization and hyper-converged platforms.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for rack mounting, cabling and data center deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the ZN-2111
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
