Liquid-Cooled Servers

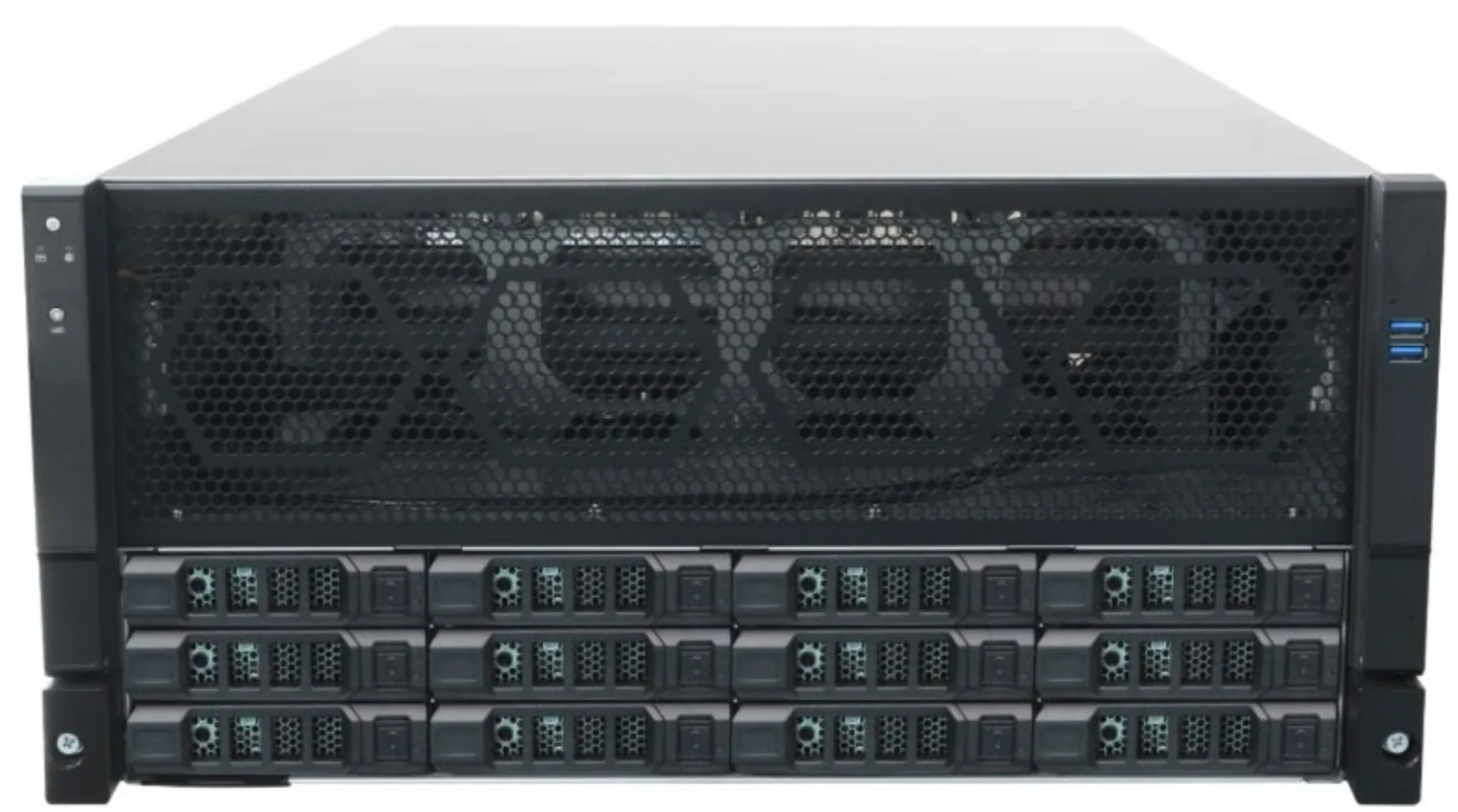

TFNEW ZH-5201-LC Rackmount Liquid-Cooled Server
Model: ZH-5201-LC · SKU: 0703001
ZH-5201-LC: an enterprise rackmount liquid-cooled server with dual 4th/5th Gen Xeon processors (TDP 385W), 32 DDR5 RDIMM slots, supporting up to 8 full-height full-length dual-width rendering GPUs or AI compute cards.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
ZH-5201-LC — Enterprise Server Platform
The ZH-5201-LC is an enterprise rackmount liquid-cooled server powered by dual 4th/5th Gen Xeon processors (TDP 385W), with 32 DDR5 RDIMM slots and support for up to 8 full-height full-length dual-width GPUs or AI compute cards.
High-Density Computing
Dual 4th/5th Gen Xeon processors with up to 8 GPUs deliver top-tier compute performance.
Advanced Liquid Cooling
Liquid-cooled design removes heat efficiently for high-density GPU workloads.
Enterprise Reliability
CRPS redundant power ensures stable 7x24 operation.
Specifications
| Processor | 2x 4th/5th Gen Xeon processors, TDP 385W; liquid-cooled |
|---|---|
| Chipset | Intel C741 |
| Memory | 32x 5600 MT/s DDR5 RDIMM slots |
| Storage | 5U 8-GPU rackmount liquid-cooled server |
| GPU | Supports 8 full-height full-length dual-width rendering GPUs or AI compute cards |
| PCIe | 12-slot PCIe passthrough board or 13-slot Switch expansion backplane, up to 10 PCIe 5.0 X16 GPU cards |
| Power | 4x CRPS power supplies, optional 2000W/2700W |
| Fans | Supports 3 high-performance fans |
| Network | 1x management port, 1x OCP3.0 port |
| BMC | DC-SCM2.0 management module, integrated BMC AST2600 chip, IPMI2.0/Redfish support |
| Environment | 5°C-35°C (operating temperature support varies by configuration) |
| Dimensions | 219 mm (H) x 436 mm (W) x 870 mm (D) |
| SKU | 0703001 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
AI Training and Inference
A high-performance compute node supporting private model training, inference and concurrent workloads.
Contact our team →Private Compute Infrastructure
Serves as the compute foundation of enterprise data centers for virtualization and hyper-converged scenarios.
Contact our team →HPC and Data-Intensive Workloads
High-throughput I/O and low-latency interconnect for scientific computing, engineering simulation and data analytics.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for rack mounting, cabling and data center deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the ZH-5201-LC
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
