Industrial Touch Displays

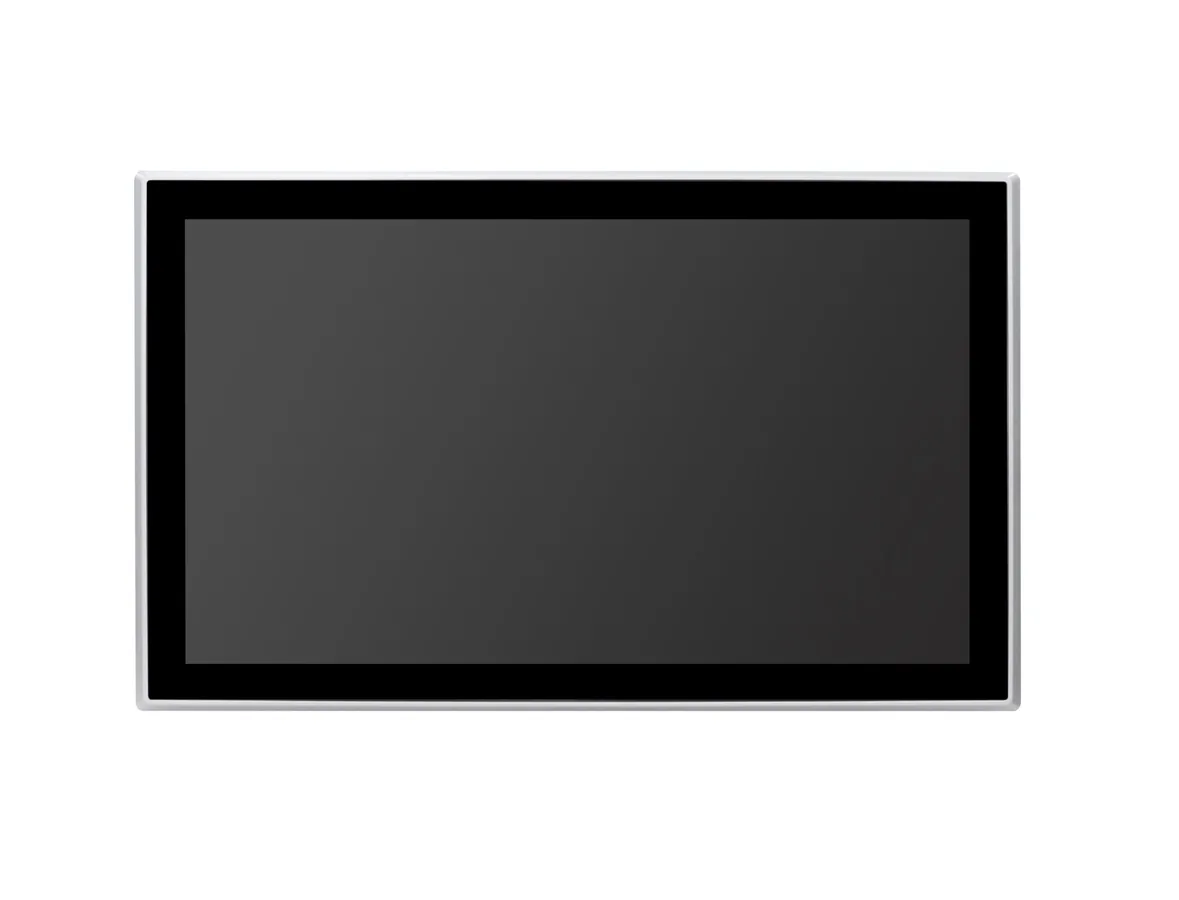

TFNEW UTC-2105D Industrial Touch Monitor
Model: UTC-2105D · SKU: 0202004
UTC-2105D: an enterprise-grade industrial touch monitor with a 1920x1080 TFT-LCD display, 300 cd/m² brightness, fanless passive cooling, and IP65 front panel protection.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
UTC-2105D Industrial Touch Monitor — Enterprise Platform
The UTC-2105D is an enterprise-grade industrial touch monitor featuring a 1920x1080 TFT-LCD display, 300 cd/m² brightness, fanless passive cooling and IP65 front panel protection.
Industrial-Grade Design
Aluminum/SGCC housing with IP65 front panel protection for demanding industrial environments.
Wide-Temperature Operation
Operates from 10°C to 60°C with fanless passive cooling for reliable 7x24 uptime.
Flexible Mounting
Supports panel, wall, desktop and VESA75 arm mounting for diverse deployment scenarios.
Specifications
| Processor/Chipset | Not specified |
|---|---|
| Memory | Not specified |
| Storage | Not specified |
| GPU | Not specified |
| PCIe | Not specified |
| Power | 12V/3A |
| Fans | Fanless (passive cooling) |
| Network | Not specified |
| Dimensions | 536.2*329.4*51 mm |
| Weight | 5.8 KG |
| Display LCD Type | TFT-LCD |
| Display Resolution | 1920x1080 |
| Display Max Colors | 16.7M |
| Display Brightness | 300 cd/m² |
| Display Viewing Angle | -89~89° (H), -89~89° (V) |
| Display Backlight | LED |
| Display Backlight Lifetime (hours) | 50,000 |
| Display Contrast Ratio | 1000:1 |
| Touch Screen Type | Five-wire resistive / 10-point capacitive |
| Touch Screen Interface Type | USB2.0 |
| Touch Screen Transmittance | 85% / >85% |
| Touch Screen Service Life | 10 million clicks at 250 g force / hardness 7H |
| Touch Screen Protection Rating | IP65 front panel |
| Operating Temperature | 10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| Vibration Resistance | 5~500 Hz, 1 Grms (operating, random) |
| SKU | 0202004 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
Industrial Automation
HMI terminals for production lines, machine control and process visualization.
Contact our team →Edge and Facility Deployment
Robust touch display for kiosks, monitoring rooms and facility management.
Contact our team →Data-Intensive Operations
Clear high-brightness display for data dashboards and operational monitoring.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm mounting method, touch type, display size and operating environment.
Configuration and Compatibility Validation
Validate display interfaces, supported operating systems and installation layout.
Delivery and Technical Support
Provide factory test reports and full lifecycle technical support.
