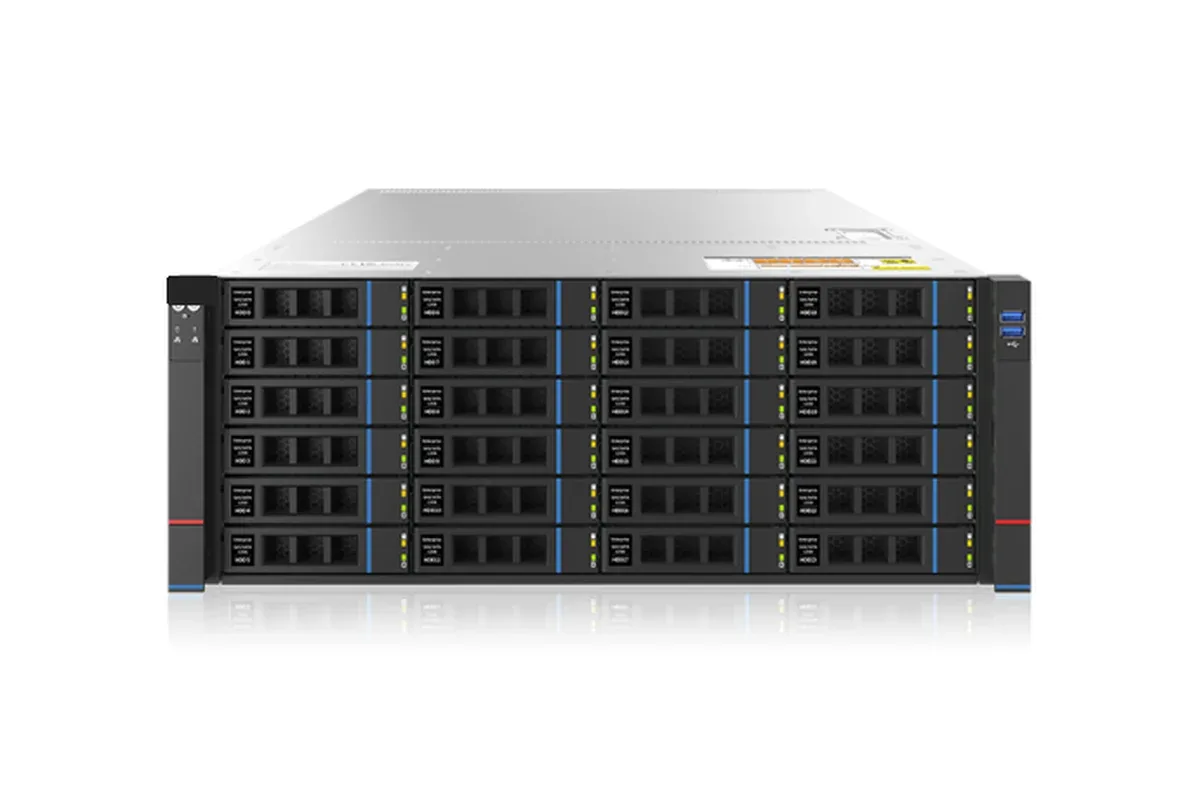

TFNEW SR401-D24RE 4U AMD Storage Server
Model: SR401-D24RE · SKU: 0603015
4U AMD dual-socket storage server supporting EPYC 7003 processors, 32 DDR4 slots, twenty-four front hot-swap bays and ten PCIe expansion slots.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
TFNEW SR401-D24RE 4U AMD Storage Server
4U AMD dual-socket storage server supporting EPYC 7003 processors, 32 DDR4 slots, twenty-four front hot-swap bays and ten PCIe expansion slots.
Compute Performance
1 or 2 AMD EPYC 7003 processors; compatible with EPYC 7002 and 7001
Storage and Expansion
24 front hot-swappable 3.5/2.5-inch SAS/SATA drives; optional 4 rear drives; 6 full-height and 4 half-height PCIe slots; 1 OCP slot
Redundant Power
550/800/1300/1600/2200 W redundant power options
Specifications
| Model | SR401-D24RE |
|---|---|
| Form Factor | 4U rackmount dual-socket storage server |
| Processor | 1 or 2 AMD EPYC 7003 processors; compatible with EPYC 7002 and 7001 |
| GPU | Supports 1 to 4 dual-width high-power GPUs, depending on configuration |
| Memory | 32 DDR4 slots; 2666/2933/3200 MHz |
| Storage | 24 front hot-swappable 3.5/2.5-inch SAS/SATA drives; optional 4 rear drives |
| Network | 2 x onboard 1GbE RJ45; 1 dedicated management RJ45 |
| I/O Interfaces | Front: 2 x USB 2.0; rear: VGA, serial, 2 x USB 3.0, management and 2 x RJ45 |
| Expansion | 6 full-height and 4 half-height PCIe slots; 1 OCP slot |
| Power | 550/800/1300/1600/2200 W redundant power options |
| Dimensions | 798 x 433.4 x 176.5 mm (D x W x H) |
| Applications | Cloud computing, virtualization, big-data processing, HPC and distributed storage |
| SKU | 0603015 |
| Warranty | - |
| Lead Time | - |
| SKU | 0603015 |
| Warranty | - |
| Lead time | - |
Applications
Applications
Cloud computing, virtualization, big-data processing, HPC and distributed storage
AI and Data Processing
Cloud computing, virtualization, big-data processing, HPC and distributed storage
Contact our team →Deployment
Deployment
Confirm CPU, expansion cards, power and facility requirements against the project configuration.
Requirements Review
Confirm CPU, memory, storage and expansion needs.
Compatibility Check
Review network, power and cooling conditions.
Delivery and Testing
Confirm the configuration and test under load before delivery.
Resources
Resources
Configuration-specific documentation is available on request.
REQUEST A QUOTE
Request a SR401-D24RE Configuration and Quote
Share target configuration, quantity and deployment conditions so our team can confirm specifications and pricing.
