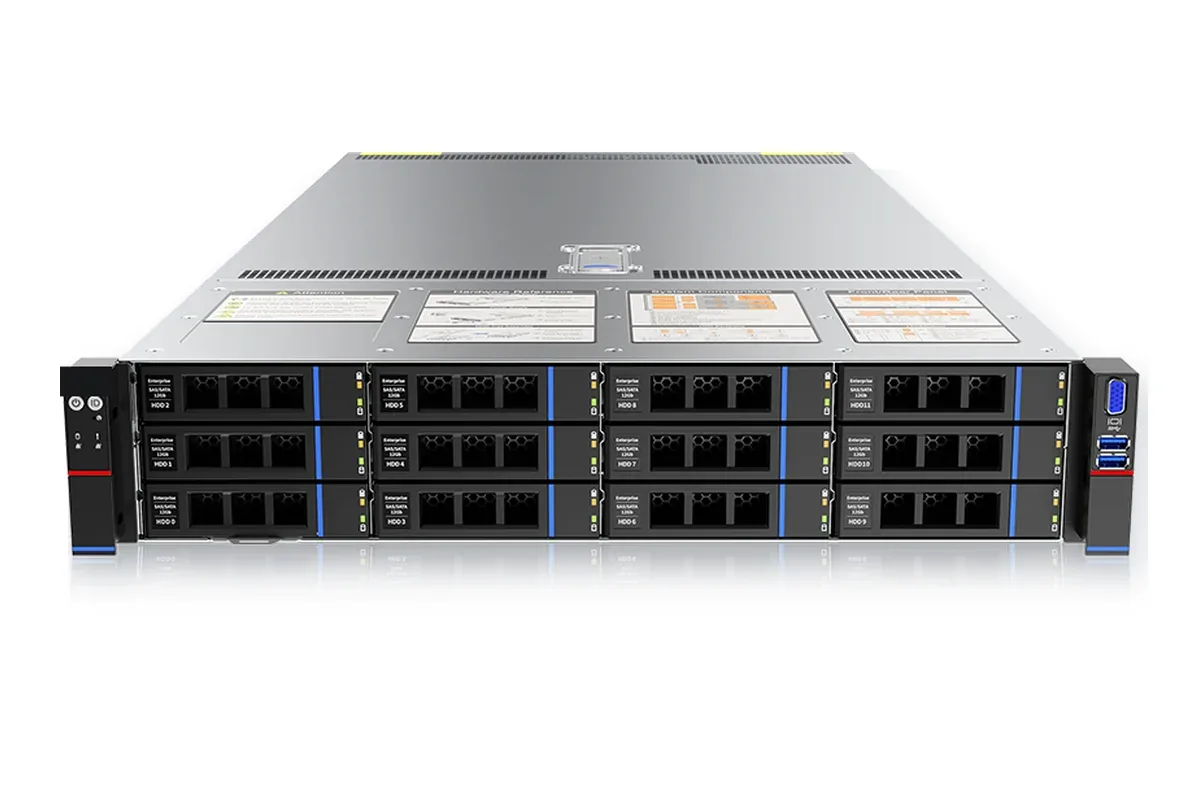

TFNEW SL201-D12R-NV-G5 2U Dual-Socket Server
Model: SL201-D12R-NV-G5 · SKU: 0603026
2U dual-socket server supporting Intel Xeon 6500P/6700P processors, 32 DDR5-6400 slots, twelve SAS/SATA/U.2 hot-swap bays and high-density PCIe expansion.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
TFNEW SL201-D12R-NV-G5 2U Dual-Socket Server
2U dual-socket server supporting Intel Xeon 6500P/6700P processors, 32 DDR5-6400 slots, twelve SAS/SATA/U.2 hot-swap bays and high-density PCIe expansion.
Compute Performance
1 or 2 Intel Xeon 6500P/6700P processors; up to 86 cores and 350 W TDP per processor
Storage and Expansion
12 front hot-swappable 3.5/2.5-inch SAS/SATA/U.2 drives; optional rear 2 x 2.5-inch modules; 6 full-height and 4 half-height PCIe slots; 2 OCP 3.0 slots
Redundant Power
800/1300/1600/2000/2200/2600 W redundant power options
Specifications
| Model | SL201-D12R-NV-G5 |
|---|---|
| Form Factor | 2U rackmount dual-socket server |
| Processor | 1 or 2 Intel Xeon 6500P/6700P processors; up to 86 cores and 350 W TDP per processor |
| GPU | PCIe expansion supports accelerator cards according to project configuration |
| Memory | 32 DDR5 RDIMM slots; up to 6400 MT/s |
| Storage | 12 front hot-swappable 3.5/2.5-inch SAS/SATA/U.2 drives; optional rear 2 x 2.5-inch modules |
| Network | 2 x onboard 1GbE RJ45; 1 dedicated management RJ45 |
| I/O Interfaces | Front: VGA and 2 x USB 3.0; rear: VGA, serial, 2 x USB 3.0 and dedicated management RJ45 |
| Expansion | 6 full-height and 4 half-height PCIe slots; 2 OCP 3.0 slots |
| Power | 800/1300/1600/2000/2200/2600 W redundant power options |
| Dimensions | 799 x 433.4 x 87.6 mm (D x W x H) |
| Applications | Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage |
| SKU | 0603026 |
| Warranty | - |
| Lead Time | - |
| SKU | 0603026 |
| Warranty | - |
| Lead time | - |
Applications
Applications
Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage
AI and Data Processing
Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage
Contact our team →Deployment
Deployment
Confirm CPU, expansion cards, power and facility requirements against the project configuration.
Requirements Review
Confirm CPU, memory, storage and expansion needs.
Compatibility Check
Review network, power and cooling conditions.
Delivery and Testing
Confirm the configuration and test under load before delivery.
Resources
Resources
Configuration-specific documentation is available on request.
REQUEST A QUOTE
Request a SL201-D12R-NV-G5 Configuration and Quote
Share target configuration, quantity and deployment conditions so our team can confirm specifications and pricing.
