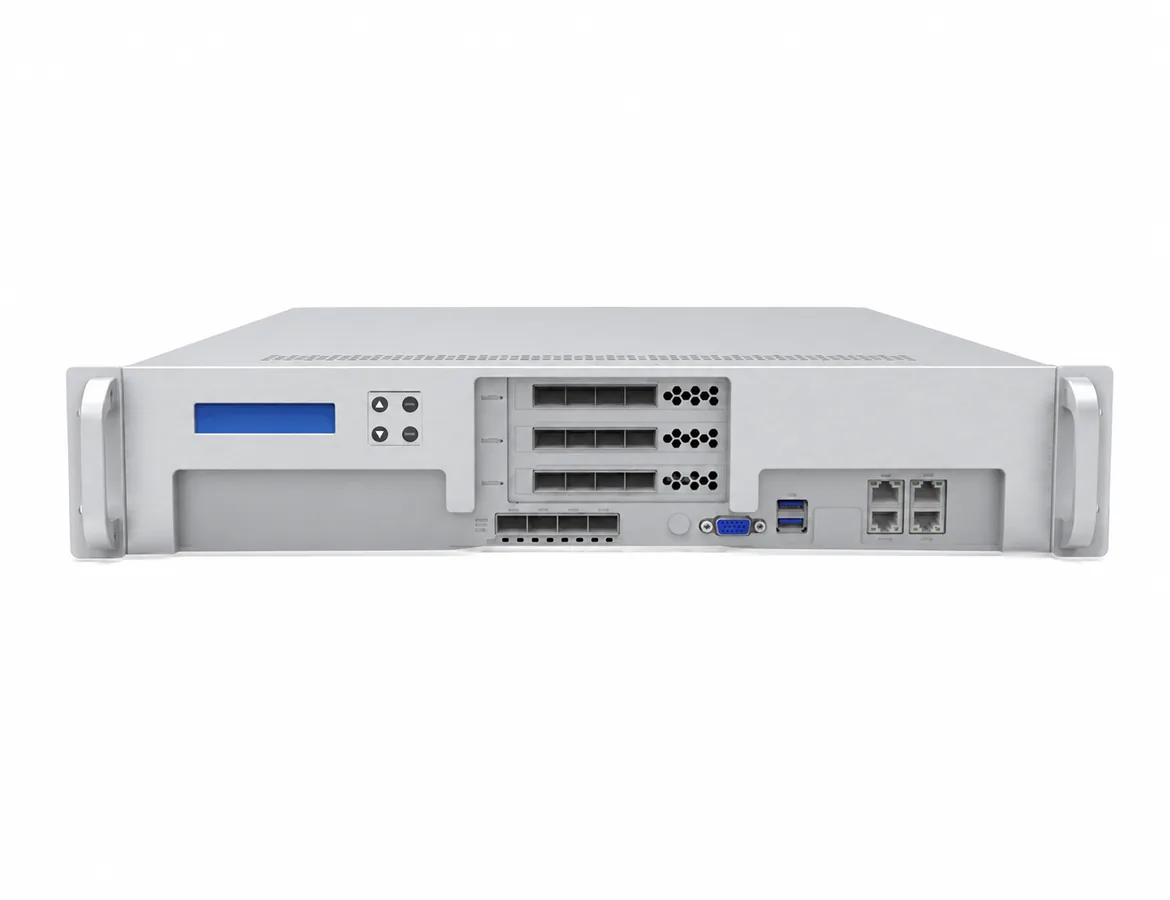

TFNEW NK-3210 Domestic ARM Custom Rack Server
Model: NK-3210 · SKU: 0601001
NK-3210: a custom server powered by a domestic 920 processor (2.6 GHz, 24 cores, optional 32 cores) with 4 DDR4 DIMM slots (up to 512 GB), supporting UOS, Kylin, openEuler and other Xinchuang operating systems.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
NK-3210 Custom Server — Enterprise Server Platform
The NK-3210 is a custom server powered by a domestic 920 processor (2.6 GHz, 24 cores, optional 32 cores), with 4 DDR4 DIMM slots supporting up to 512 GB.
High-Density Computing
Powered by the domestic 920 processor to meet enterprise-grade workload requirements.
Flexible Storage Expansion
DDR4 memory up to 512 GB and 3 internal SATA bays for elastic scaling of business data.
Enterprise Reliability
900W 1+1 redundant power and efficient thermal design ensure stable 7x24 operation.
Specifications
| Processor | Domestic 920 series ARM processor, 2.6 GHz / 24 cores / 24 threads (optional 32-core CPU) |
|---|---|
| Chipset | SOC |
| Memory | 4 DIMM slots supporting 3200/2933 MHz ECC DDR4, up to 512 GB |
| Storage | 2x 3.5-inch and 1x 2.5-inch internal SATA bays; integrated display chip, 2x gigabit Ethernet ports, 4x 10GE/25GE ports, 1x 1000Base-T management port |
| Expansion | External: 3x PCIe 4.0 x16 slots (SLOT1/2/3 at x8 signal); optional internal: 2x PCIe 4.0 x16 slots (SLOT4: Atlas 300I dedicated, SLOT5: RAID card dedicated) |
| I/O Ports | Front: 1x VGA, 1x USB3.0, 1x USB2.0, 1x RJ45_RS232; Rear: 2x RJ45 network ports, 4x 10GE/25GE optical ports, 1x dedicated remote management port (RJ45) |
| Power | Standard 900W 1+1 redundant (optional single), 110V-240V input, 50/60 Hz |
| Operating Environment | Temperature 10°C ~ 35°C, relative humidity 20% ~ 80% |
| Operating Systems | UOS, Kylin, openEuler |
| Dimensions | 2U rackmount, 500 D x 430 W x 88 H (mm), max net weight approx. 18 kg |
| SKU | 0601001 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
AI Training and Inference
A high-performance compute node supporting private model training, inference and concurrent workloads.
Contact our team →Private Compute Infrastructure
Serves as the compute foundation of enterprise data centers for virtualization and hyper-converged scenarios.
Contact our team →HPC and Data-Intensive Workloads
High-throughput I/O and low-latency interconnect for scientific computing, engineering simulation and data analytics.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for rack mounting, cabling and data center deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the NK-3210 Custom Server
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
